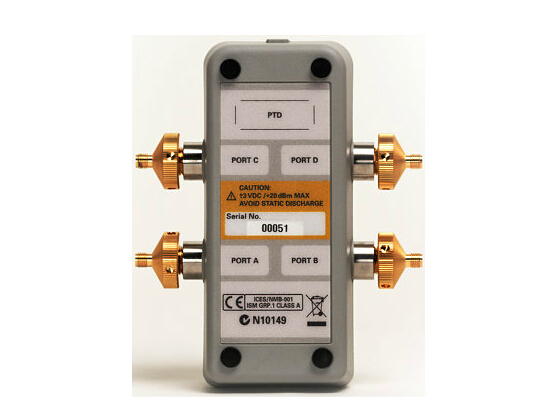

N4433A 微波电子校准件, 300 kHz to 20 GHz,4端口, 3.5mm
| N4433A-010 | Four 3.5 mm female connectors |
| N4433A-101 | Port A connector is 3.5 mm female |
| N4433A-102 | Port A connector is 3.5 mm male |
| N4433A-150 | Wooden storage box |
| N4433A-1A7 | Calibration + Uncertainties + Guardbanding (Not Accredited) |
| N4433A-201 | Port B connector is 3.5 mm female |
| N4433A-202 | Port B connector is 3.5 mm male |
| N4433A-301 | Port C connector is 3.5 mm female |
| N4433A-302 | Port C connector is 3.5 mm male |
| N4433A-401 | Port D connector is 3.5 mm female |
| N4433A-402 | Port D connector is 3.5 mm male |
| N4433A-A6J | ANSI Z540-1-1994 Calibration |
| N4433A-ABA | Printed manual English |
| N4433A-ATP02 | ATP Lead time for Option H43 |
| N4433A-UK6 | Commercial calibration certificate with test data |
主要特性与技术指标
- 频率范围从300 kHz至20 GHz
- 标准的3.5 mm阴性连接器
- 通过单一连接进行快速完整的3端口或4端口校准
- NIST标准精确校准
- 减小连接器磨损
- 通过USB接口直接控制PNA和ENA系列网络分析仪
- 可靠的固态开关
- 混合的3.5 mm阳性/阴性连接器选件
