主要特性和功能
60 GHz bandwidth (65 GHz typical)
2 or 4 channels per module (user-selectable option)
User-selectable bandwidth settings of 60/45/35/20 GHz
Electrical Inputs: 1.85mm male or female (user-selectable option)Sample rate 250 kSa/s
60 GHz bandwidth (65 GHz typical)
2 or 4 channels per module (user-selectable option)
User-selectable bandwidth settings of 60/45/35/20 GHz
Electrical Inputs: 1.85mm male or female (user-selectable option)Sample rate 250 kSa/s
技术指标
带宽 60 GHz
支持的数据速率 12 MBd to 32 GBd
输入类型 1.85 mm
模块类型 Electrical
Operating System 无

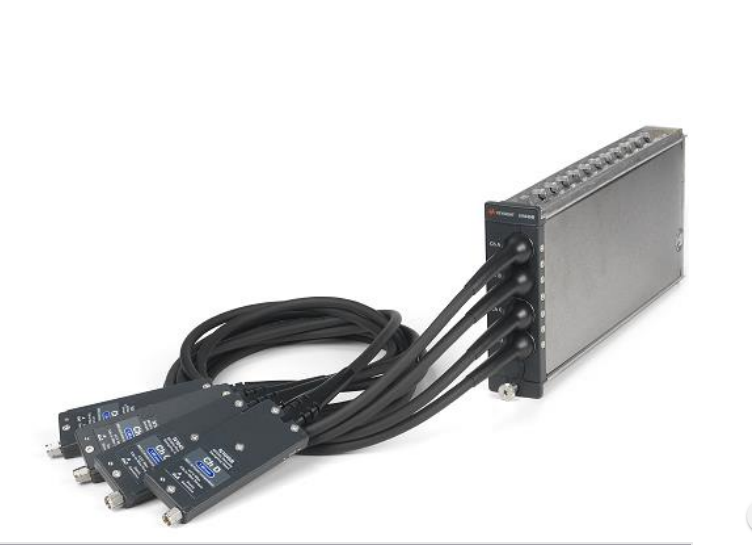

N1045B 60 GHz 2/4 port electrical remote sampling head
N1045B-02F 2 channel remote head, 1.85mm, female inputs
N1045B-02M 2 channel remote head, 1.85mm, male inputs
N1045B-04F 4 channel remote head, 1.85mm, female inputs
N1045B-04M 4 channel remote head, 1.85mm, male inputs
N1045B-C0C Certificate of calibration
N1045B-UK6 Commercial calibration certificate with test data
N1027A-45A Accessory kit for two N1045A/N1045B channels
