1.5 GHz
4个模拟通道和16个数字通道

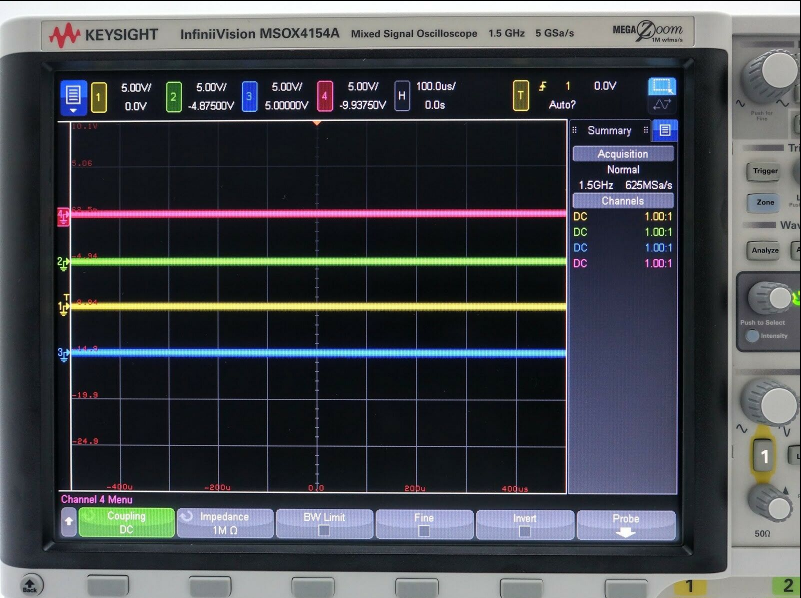

12.1 英寸电容触摸屏幕支持您轻松查看信号
独有的区域触摸触发技术支持您在几秒钟内轻松隔离信号
4 Mpts 存储器和标配分段存储器可以捕获更多数据
高达 1,000,000 波形/秒的更新速率可以让您查看更多信号细节
全面的可升级特性支持您扩展测量功能：您可以在任意时间添加双通道 20 MHz 任意波形和函数发生器（WaveGen）、3 位 DVM、串行触发与分析和模板测试
技术指标
带宽 1.5 GHz
通道数 4 + 16
最大存储器深度 4 Mpts
最大采样率 5 GSa/s
ADC 位数 8 bits
选件
Software Application
MSOX4000-VID Enhanced video/TV application package, installed fixed perpetual license
MSOX4000-SND Audio serial triggering and analysis (I2S), installed fixed perpetual license
MSOX4000-PWR Power analysis application, installed fixed perpetual license
MSOX4000-FLX FlexRay serial triggering and analysis license, installed fixed perpetual license
MSOX4000-AMS Automotive serial triggering and analysis (CAN,LIN), installed fixed perpetual license
MSOX4000-AER MIL-STD 1553 and ARINC 429 serial triggering and analysis, installed fixed perpetual license
MSOX4000-WAV Dual Channel WaveGen 20 MHz Function/Arbitrary waveform generator, installed fixed perpetual license
MSOX4000-USF USB 2.0 Full/Low Speed serial decode and triggering, installed fixed perpetual license
MSOX4000-U2H USB 2.0 Hi-Speed serial decode and triggering, installed fixed perpetual license
MSOX4000-MSK Mask Limit testing, installed fixed perpetual license
MSOX4000-EMB Embedded serial triggering and analysis (I2C, SPI), installed fixed perpetual license
MSOX4000-CMP Computer serial triggering and analysis (RS232/422/485/UART), installed fixed perpetual license
MSOX4000-U2Q USB 2.0 signal quality analysis for 4000 X-series oscilloscopes, installed fixed perpetual license
MSOX4000-SEN Single Edge Nibble Transmission (SENT) trigger and decode, installed fixed perpetual license
MSOX4000-BDL SW application bundle license for 4000 X-Series, factory installed fixed perpetual license
MSOX4000-NFC NFC automated test for 4000 X-Series oscilloscope, installed fixed perpetual license
MSOX4000-CXP CXPI trigger and decode, installed fixed perpetual license
MSOX4000-FRA Frequency Response Analyzer, installed fixed perpetual license
MSOX4000-NRZ Manchester/NRZ protocol triggering and analysis, installed fixed perpetual license
MSOX4000-U03 USB-PD (Power Delivery) triggering and decode, installed fixed perpetual license
Calibration Documentation
MSOX4000-A6J ANSI Z540-1-1994 Calibration
MSOX4000-AMG Calibration + Uncertainties + Guardbanding (Accredited)
Regional Distribution Center
MSOX4000-PLG Continental European Power Cord - Only For EU DISTR W MULT Power Cord Standards
Accessories
MSOX4000-1CF Soft Carrying Case
Localized Front Panel Overlays
MSOX4000-AKT Overlay - Russian front panel
MSOX4000-ABZ Overlay - Italian front panel
MSOX4000-ABJ Overlay - Japanese front panel
MSOX4000-ABF Overlay - French front panel
MSOX4000-ABE Overlay - Spanish front panel
MSOX4000-ABD Overlay - German front panel
MSOX4000-AB9 Overlay - Portuguese front panel
MSOX4000-AB2 Overlay - Simplified Chinese front panel
MSOX4000-AB1 Overlay - Korean front panel
MSOX4000-AB0 Overlay - Traditional Chinese front panel
MSOX4000-AB3 Overlay- Thai Localization
MSOX4000-AB8 Overlay -Turkish Localization
MSOX4000-AK8 Overlay - Czech Localization
MSOX4000-AKD Overlay- Polish Localization
